Send Inquiry13 Ton Inboard American Type Trailer Axle
Price 100 USD ($)/ Piece
MOQ : 58 Pieces
13 Ton Inboard American Type Trailer Axle Specification
- Color
- Gray
- For Use In
- Heavy Duty Truck, Trailer ,Semi Trailer
- Material
- Metal
- Weight
- 120kg/140kg/160kg Kilograms (kg)
- Product Type
- Trailer ,Semitrailer and Truck
- Finish
- Polished
13 Ton Inboard American Type Trailer Axle Trade Information
- Minimum Order Quantity
- 58 Pieces
- Supply Ability
- 10000 Pieces Per Month
- Delivery Time
- 30 Days
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Africa
About 13 Ton Inboard American Type Trailer Axle
With an aim to be a leader in the market and establish ourselves as a brand, we are serving our respected clients by manufacturing and supplying 13 Ton Inboard American Type Trailer Axle. It is engineered with utmost precision and fabricated using best quality components that we procure form authorized vendors only. These axles are widely used in vehicles and wagons for holding wheels and supporting revolution. We have a dedicated team of quality analysts who check 13 Ton Inboard American Type Trailer Axle on well-defined quality parameters prior to dispatch to ensure that our clients get a flawless range of products.
Features:
-
High strength and durability
-
Excellent dimensional stability
-
Good tensile strength and bend resistance
| Axle model | JZ13ANR1 | JZ13ANR2 | JZ13ANS1 | JZ13ANS2 | JZ13ANS3 | JZ13ANS4 | JZ13ANS5 |
| Rated loading capacity (kg) | 13000 | 13000 | 13000 | 13000 | 13000 | 13000 | 13000 |
| Bearing | HM518445/10 | HM518445/10 | HM518445/10 | HM518445/10 | HM518445/10 | HM518445/10 | HM518445/10 |
| Wheel track (mm) | 1840 | 1840 | 1840 | 1840 | 1840 | 1840 | 1840 |
| Brake size | 420180 | 420180 | 420180 | 420180 | 420180 | 420180 | 420180 |
| Center distance of brake chamber (mm) | 388 | 388 | 388 | 388 | 388 | 388 | 388 |
| Wheel fixing (P.C.D.H) | 285.75221 | 335281 | 285.75221 | 335281 | 285.75221 | 285.75221 | 335281 |
| Wheel bolt size | 8-M201.5 JAP | 10-M221.5 ISO | 10-M201.5 JAP | 10-M221.5 ISO | 10-M201.5 JAP | 10-M221.5 ISO | 10-M221.5 ISO |
| Axle tube size (mm) | 127 | 127 | 127 | 127 | 150 | 150 | 150 |
| Camshaft length (CL, mm), splinenumber | 588, 1.625 '-37spline | 588, 1.625 '-37spline | 588, 1.625 '-37spline | 588, 1.625 '-37spline | 588, 1.625 '-37spline | 588, 1.625 '-37spline | 5881.625 '-37 spline |
| Weight (kg) | 356 | 358 | 356 | 356 | 368 | 365 | 358 |
| Recommended wheel | 7.50V-20 | 7.50V-20 | 7.50V-20 | 7.50V-20 | 7.50V-20 | 7.50V-20 | 7.50V-20 |
| Max. length (mm) | 2198 | 2198 | 2198 | 2198 | 2198 | 2198 | 2198 |
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Truck suspension & Trailer Axle Category

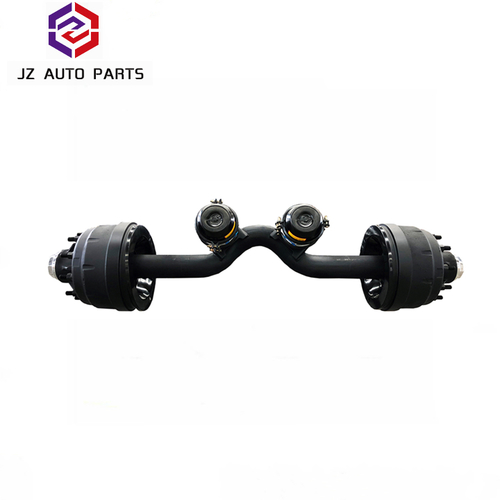

Drop Center Trailer Axle
